QLQ Plastic Slider Injected Zipper Resin Injection Mold For Plastic Puller Moulds Manufacturers Plastic Slider Mould

: QLQ Plastic Slider Injected Zipper Resin Injection Mold For Plastic Puller Moulds Manufacturers Plastic Slider Mould

EMAIL:cathy@qlqcompany.com

Key attributes

Industry-specific attributes

Shaping Mode

Plastic Injection Mould

Other attributes

Place of Origin	Guangdong, China
Brand Name	QLQ
Model Number	Plastic slider injection mould
Product Material	FDAC, DAC
Product	slider body mould
Mould material	P20/718/738/NAK80/S136
Mould Life	250000-300000shots
Runner	Hot Runner
Cavity	32/40/48/72
Mould base	LKM Mould Base

Packaging and delivery

Packaging Details	Standard export paking.
Port	Guangzhou

Supply Ability

100 Set/Sets per Month

Specification

Item	Plastic slider injection mould
Cavities	32pcs/mould. It's customized according to your injection machine and products.
Material	Die steel, LKM, ASSAB S136
Dimension	It's customized according to your injection machine and products.
Weight	around 500kgs
Service life	more than 1,000,000 moulds
Advantage	1. Our moulds are made by quality die steel material, LKM and ASSAB material. 2. With an experienced master team, which has been in the mould field for more than 15 years, we will design the mould according to your machine and required output, to improve your production capacity and keep the injection quality. 3. All the moulds will be tested until they are smooth opening and closing, to assure customers can use it directly under smooth situation when they receive moulds. 4. With precise moving cores, our moulds can make products without burr. 5. We can control the precision within 0.02mm.

Product Description

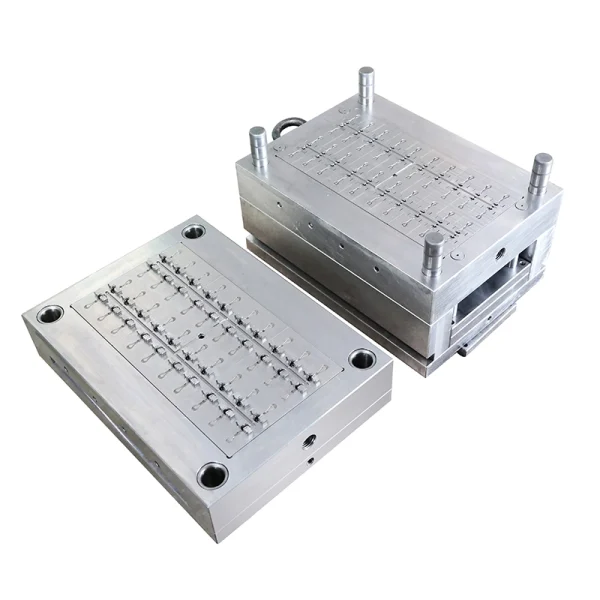

--Side view of the upper part and lower part.

--The mould dimension would be designed according to your product and machine.

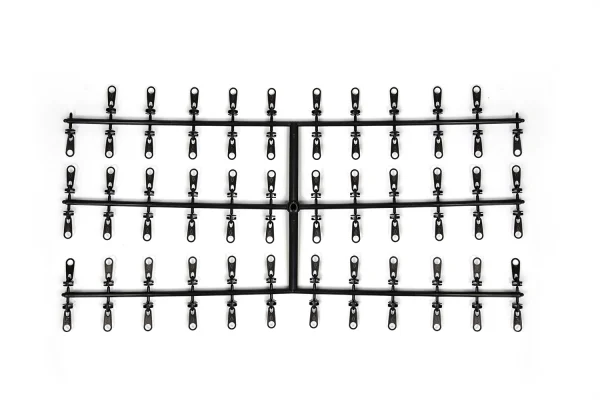

--The mould testing sample.

--Mould testing is our standard process. There are very less burrs on the product frame.

--To assure it is 100% workable before delivery, it would be tested at least 500 moulds.

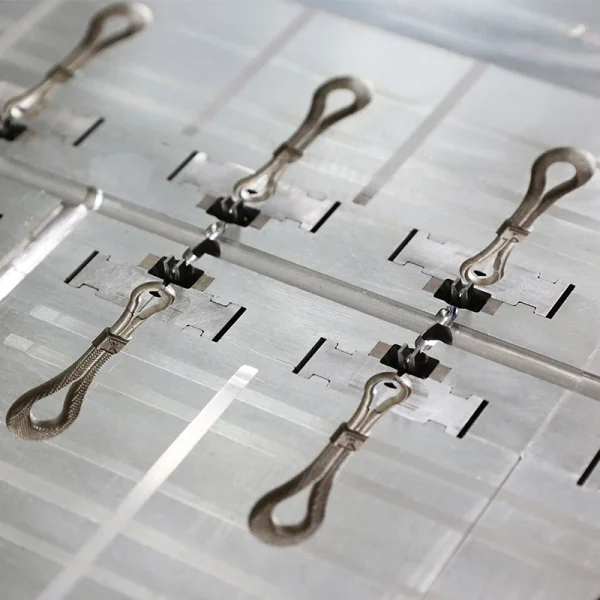

--Clean and neat ways.

--Moulds are polished by the experienced worker manually to make each way smooth.

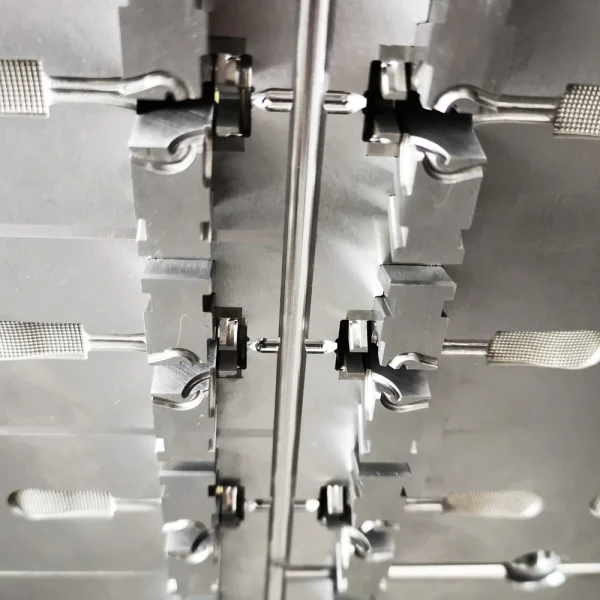

--High precision.

--The precision error of our moulds could be ±0.02mm.

--Plastic slider injection mould working situation.

--It's installed on the injection machine.

Packing & Delivery

Export standard packing.

--QLQ injection mould is packed by above 4 steps.

--The injection mould would be protected by the strong packing as much as possible.

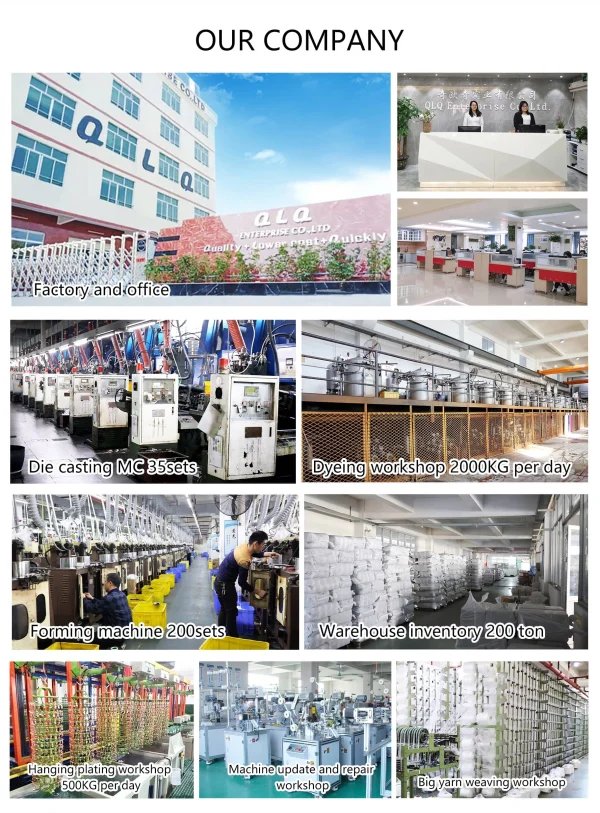

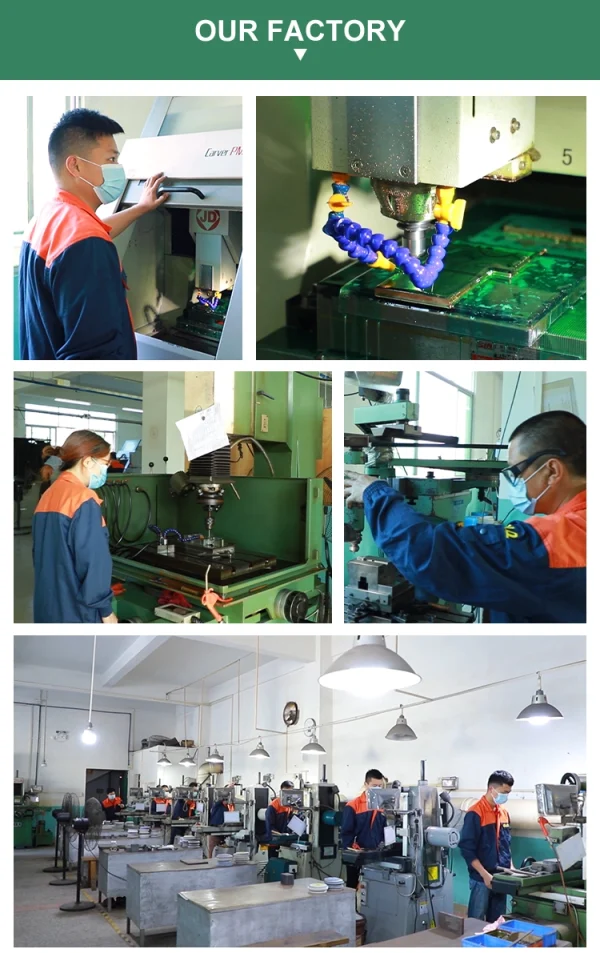

Company Profile

FAQ

1. Do you sell spare parts for injection mould?
QLQ: Yes, normally the spare parts for injection mould we have mould insert, mould frame, sliper, moving core, head of nozzle. You can check and inform what spare parts you need.

2.What is your mold frame made of?
QLQ: Our mold insert is made of LKM material.

3. What is your moving core made of?
QLQ: Our moving core is made of ASSAB S136 material.

4. What is the tolerance of your moving cores?
QLQ: The grinding dimension tolerance of each mold core is 0.02mm and the engraving dimension tolerance is 0.02mm, so that we can ensure that the product size does not have any serious size deviation.
