QLQ N56 slider body mould non lock slider no.5 standard size slider for bags for nylon zipper QLQ zipper die casting mould

: QLQ N56 slider body mould non lock slider no.5 standard size slider for bags for nylon zipper QLQ zipper die casting mould

EMAIL:cathy@qlqcompany.com

Key attributes

Industry-specific attributes

Shaping Mode

Die Casting

Other attributes

Place of Origin	Guangdong, China
Brand Name	QLQ
Model Number	Slider Mould
Product Material	FDAC, DAC
Product	slider body mould
Mould Cavity	1*12cavity
Size	no.5

Packaging and delivery

Packaging Details

Standard export paking.

Supply Ability

100 Set/Sets per Month

Specification

Item	QLQ N56 non lock slider body mould
Cavities	12 cavity/mould, designed for 7.5T casting machine The cavity quantity is customized according to different casting machine power and slider weight.
Material	Heat resistant mould steel, DAC / FDAC
Dimension	Mould size is customized according to the mould putting plate size of die casting machine.
Weight	around 27kgs
Service life	more than 1,000,000 moulds
Advantage	1. Our moulds are made by quality die steel material, DAC and FDAC, which are imported from Japan and Taiwan directly. 2. With an experienced master team, which has been in the mould field for more than 15 years, we will design the mould according to your machine and required output, to improve your production capacity and keep the die casting quality. 3. All the moulds will be tested for more than 500 moulds to assure customers can use it directly under smooth situation when they receive moulds. 4. With precise moving cores, our moulds can make products without burr. 5. We can control the precision within 0.02mm.

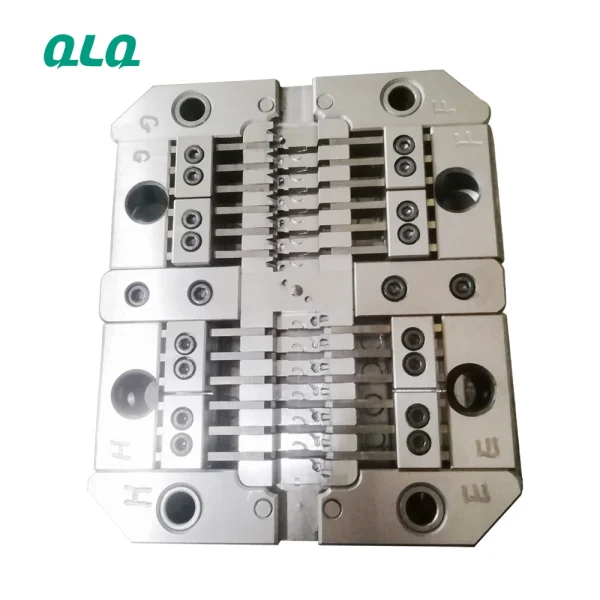

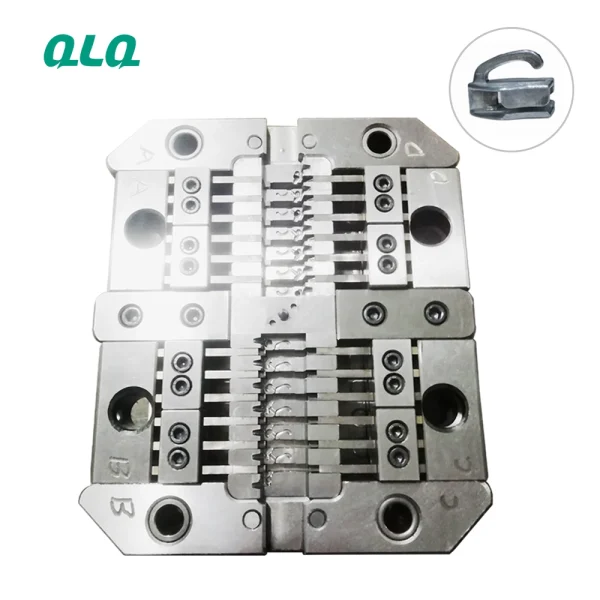

QLQ Non-lock slider body mould

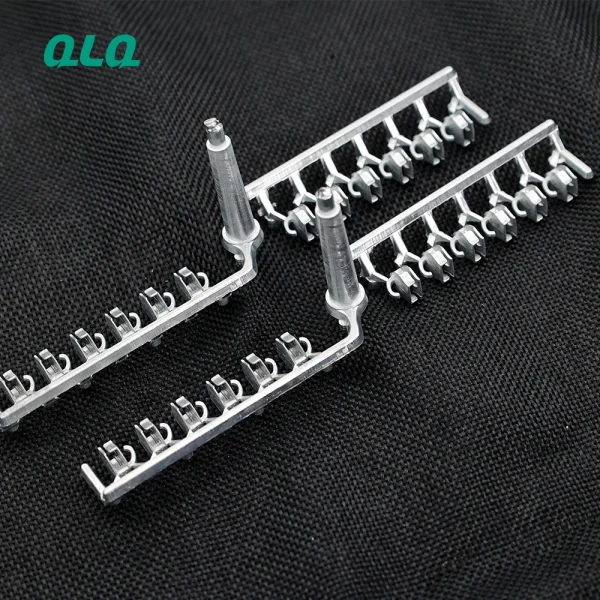

The mould testing shot samples with frame.

Mould testing is our important step before shipment, to assure it is 100% perfect mould, we will test the ready moulds for 500 moulds/shots at least.

_{As we can see, there are very less burrs on the product frames,}

_{as our technicians have polished the mould inserts & cores very}well.

also like following mould detailed photos:

Clean and neat ways.

Moulds are polished by the experienced worker manually to make each groove smoothy.

High precision.

The precision error of our moulds could be ±0.02mm.

Packing & Delivery

Free brass nozzle

Packed with bubble wraps

and plywood case

Mark down the mould number and packing details on case surface, easy to identify.

Company Profile

Facebook

YouTube

WeChat

FAQ

1. Do you sell spare parts for die casting mould?
QLQ: Yes, normally the spare parts for die casting mould we have mould insert, mould frame, window core, moving core, head of nozzle. You can check and inform what spare parts you need.

2.What is your mold insert made of?
QLQ: Our mold insert is made of DAC.

3. What is your moving core made of?
QLQ: Our moving core is made of FDAC.

4. What is the tolerance of your moving cores?
QLQ: The grinding dimension tolerance of each mold core is 0.02mm and the engraving dimension tolerance is 0.02mm, so that we can ensure that the product size does not have any serious size deviation.
