Hot Chamber 38T 25t Zinc Zipper Slider Die Casting Press Machine price for Hardware Hook button Metal Badge die-casting machine

: Hot Chamber 38T 25t Zinc Zipper Slider Die Casting Press Machine price for Hardware Hook button Metal Badge die-casting machine

EMAIL:cathy@qlqcompany.com

Key attributes

Other attributes

Machine Type	Hot Chamber Die Casting Machine
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2022
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Place of Origin	Guangdong, China
Condition	New
Weight (KG)	2000
Warranty	1 Year
Key Selling Points	High Productivity
Applicable Industries	Energy & Mining, Machinery Repair Shops, Manufacturing Plant, Zipper Factory, Zipper Slider Factory
Showroom Location	Turkey
Max.Thickness of Die Block (mm)	300 mm
Min.Thickness of Die Block (mm)	120 mm
Ejection Force(kN)	40 kN
Ejection Stroke(mm)	45 mm
Brand Name	QLQ
Dimension(LWH)	310015002000 (mm)
Year	2022

Packaging and delivery

Selling Units:	Single item
Single package size:	310X150X250 cm
Single gross weight:	2500.000 kg

Supply Ability

100 Set/Sets per Month

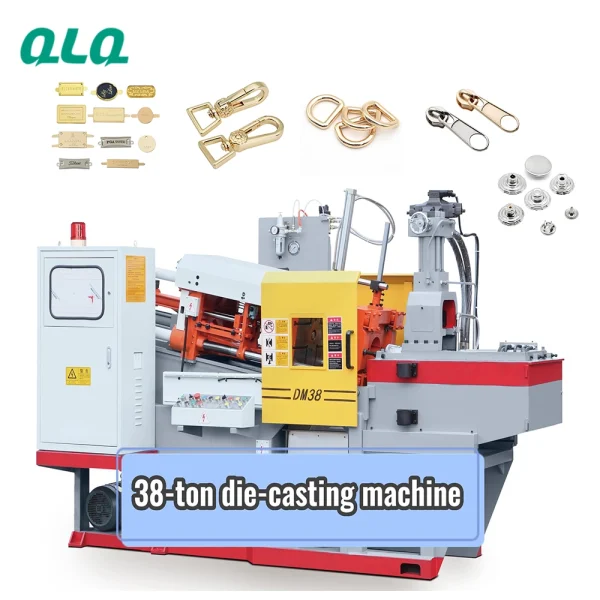

38T Hot Chamber Die Casting Machine

Good price, good technical support, buy it from QLQ.

Product Specification

Parameter table of die casting machine (hot chamber)
Configuration item	Parameter	Configuration item	Parameter
Clamp force	380 KN	Punch diameter	42 mm
Clamping stroke	190 mm	Weight of shot materiasl/Zn	0.7 Kg
Ejecting force	40 KN	Capacity of crucible/Zn	360 Kg/Zn
Ejection stroke	45 mm	Motor power	7.58 KW
Mold thickness	120-300 mm	System working pressure	8.5 MPa
Platen Size(WxH)	450*430 mm	Furnace(oil)	3.5 Kg/h
Tiebar spacing(WxH)	300*280 mm	Electric furnace	18 Kw
The diameter of Tiebar	50 mm	Oil tank volume	200 L
Position of shot material	0 mm	Shot nozzle heating power	1.5 Kw
Force of shot material	55 KN	*Size of material cup bodyshape (LWH)*	298014501920 mm
Stroke of shot material	105 mm	*Size of material pot bodyshape (LWH)*	312015302000 mm
Stroke far from nozzle	0-330/270 mm

-- Fast speed, high efficiency, good pressure and strong stability.

-- Zinc alloy products are widely used in electronic technology, zippers, luggage accessories, furniture harware and so on.

Packing & Delivery

QLQ After-sales Service Type

1) Training

QLQ after-sales team training customer's technicians how to use our machine in their factory.

2) Reference Videos

We can offer many useful videos to teach customer's technician how to use our machine well. We will also provide inspection report before shipment.

3) High Approval of Our Machines

Customers can come to our factory to learn how to make the high quality products on our machines.

Company Profile

FAQ

1. Should I choose how many ton die casting machine?

QLQ: It depens on your products. For example, if your products is big or you want to made the products for more at once time, you can choose this 38T hot chamber die casting machine.

2. What is the heating way of your die casting machine?

QLQ: We can make electrical heating, natural gas heating or diesel oil heating. You can choose it as per your requirement.

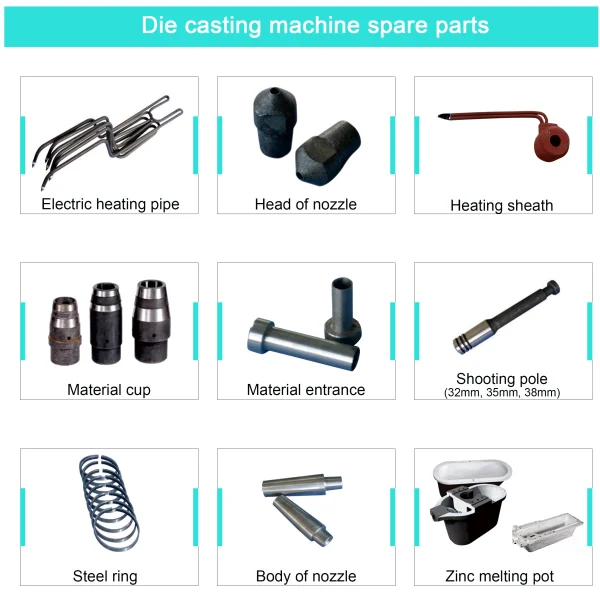

3. I want to buy spare parts of die casting machine, can you offer to me?

QLQ: Sure. Which spare parts do you need? And what is the brand and capacity of your die casting machine? It is better that you can send the name plate of your machine directly.
