Die cast Mould for Zipper Slider Pins

: Die cast Mould for Zipper Slider Pins

EMAIL:cathy@qlqcompany.com

Key attributes

Other attributes

Place of Origin	Guangdong, China
Brand Name	QLQ
Model Number	P-M
Product Material	FDAC, DAC
Product	slider pin
Product type	Cast Mould

Packaging and delivery

Packaging Details	standard Export packing.
Port	Shenzhen/Guangzhou
Selling Units:	Single item
Single package size:	[Insert single package size here]
Single gross weight:	[Insert single gross weight here]

Supply Ability

100 Set/Sets per Month

Industry-specific attributes

Shaping Mode

Die Casting

Product Description

More than 20 years of mold design experience

Moulds are polished by the experienced worker manually to make each way smooth.

High precision.

The precision of our moulds could be ±0.02mm.

Specification

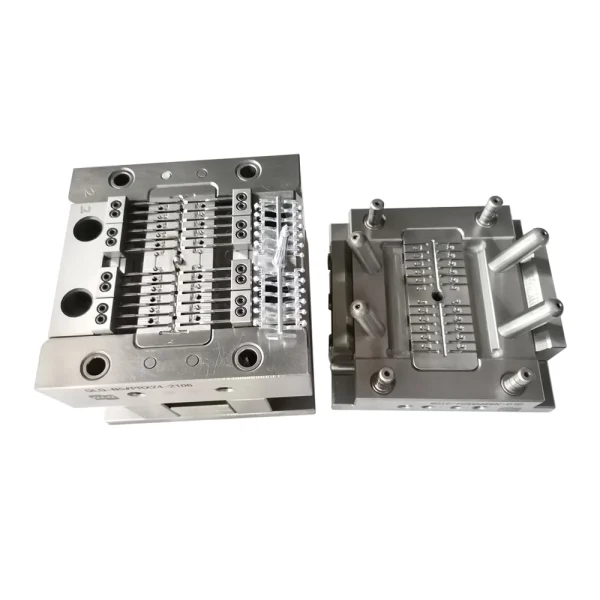

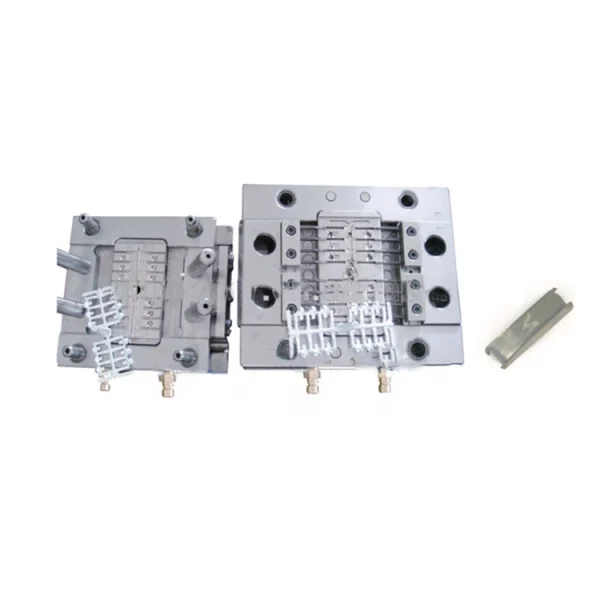

Item	Slider pin die casting mould
Cavities	24pcs/mould. It's customized according to your die casting machine and products.
Material	Die steel, DAC / FDAC
Dimension	It's customized according to your die casting machine and products.
Weight	around 50kgs
Service life	around 1,000,000 moulds
Accessories	1 set of moving core, 1 set of brass nozzle

Packing & Delivery

Export standard packing.

Mould frames are always packed by wooden box.

Mould inserts are always packed by bubble bag before being packed in the carton. When the quantity is less than 3, we will use carton for packing. When it's more than 3, we will use wooden box for packing.

FAQ

1. What is the advantages of your die casting mould?
Our materials are authentic FDAC imported from Taiwan. We have learned that there are 4 grades of FDAC materials. The best quality materials are kept in Japanese military enterprises, 2-grade in Japan and the United States, 3-grade in Taiwan and other developed countries, and 4-grade in China and other poor countries. Many of our domestic factories buy FDAC materials with 4-grade materials. The materials we import in Taiwan are totally different from those we buy in China. When the technician grind the materials on the grinder machine, the sparks will be different.

2. Do you sell spare parts for die casting mould?
Yes, normally the spare parts for die casting mould we have mould insert, mould frame, window core, moving core, head of nozzle. You can check and inform what spare parts you need.

3.What is your mold insert made of?
Our mold insert is made of H13.

4. What is your moving core made of?
Our moving core is made of FDAC.

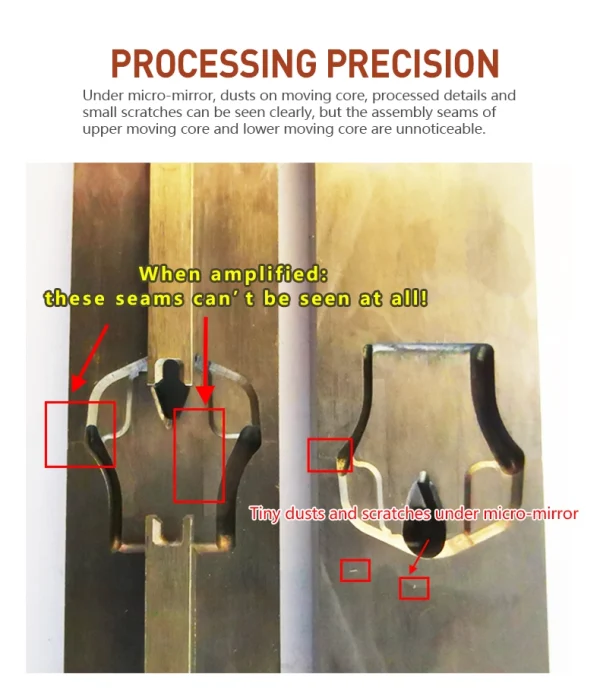

5. What is the tolerance is your moving cores?
In our mould factory, the grinding dimension tolerance of each mold core is 0.002 and the engraving dimension tolerance is 0.02, so that we can ensure that the product size does not have any serious size deviation.
