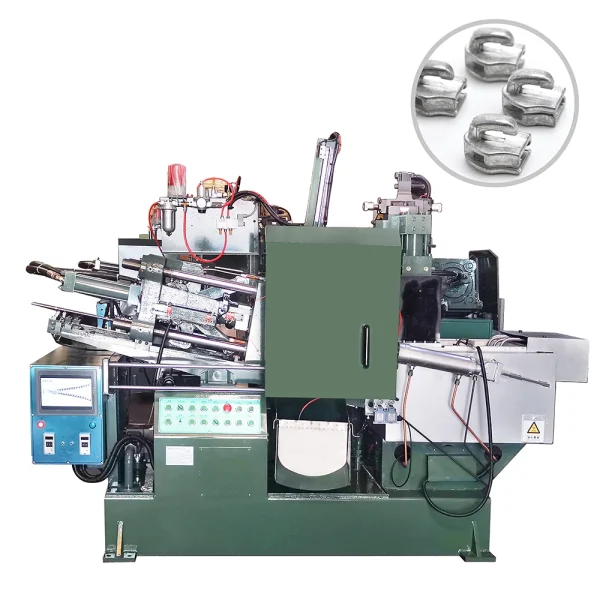

die cast machine 30ton automatic molding hardware die casting machine die-casting machine for hardware

: die cast machine 30ton automatic molding hardware die casting machine die-casting machine for hardware

EMAIL:cathy@qlqcompany.com

Key attributes

Other attributes

Machine Type	Hot Chamber Die Casting Machine
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Place of Origin	Guangdong, China
Condition	New
Weight (KG)	500
Warranty	1 Year
Key Selling Points	Automatic
Applicable Industries	Energy & Mining, Machinery Repair Shops
Showroom Location	Italy
Max.Thickness of Die Block (mm)	100 mm
Min.Thickness of Die Block (mm)	100 mm
Ejection Force(kN)	1 kN
Ejection Stroke(mm)	1 mm
Brand Name	QLQ
Voltage	380V
Dimension(LWH)	2.1x1.2x2.3m
Power (kW)	2
Product type	Casting Machine
Power(W)	1.6KW
Weight	800Kg
After-sales Service Provided	Field installation, commissioning and training
After Warranty Service	Video technical support

Packaging and delivery

Packaging Details

Standard export packing

These machines can make all types of slider body, cap, puller, and other zinc alloy products like pin, box and stoppers.

Project	Unit	30T
The locking pressure	KN	30Ton
The current capacity of the oil pump	L	RV2R2-53
The capacity of oil tank	L	350
The nominal pressure	Kg/cm2	80
The energy accumulator	L-number	20L
Energy accumulator	kw	7.5HP(10HP)
The size of the inner pillar(mold installed size)	mm	275*275
The mould-opening stroke	mm	200
The thickness of the mould(min-max)	mm	130-280
The tiebar diameter	mm	Φ50
The injecting force	KN	36
The injecting stroke	mm	100
The injecting rod diameter	mm	Φ45
The ejection location	mm	40
The die-casting quantity(reality)	g	60-350
The injection location	mm	0
The capacity of the melting pot(zinc)	kg	150
The center distance of front mold screw	mm	120

Our Advantages

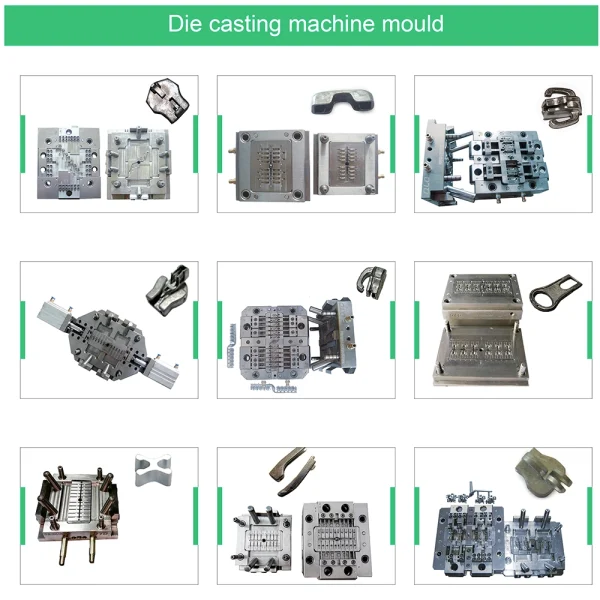

Zinc Die Casting Mould Sample

Company Profile

FAQ

1. Should I choose how many ton die casting machine?

QLQ: It depens on your products. For example, if you want to make non-lock slider, we suggest to choose 25ton. And if you want to make auto-lock slider, we suggest to choose 15ton.

2. What is the heating way of your die casting machine?

QLQ: We can make electrical heating, natural gas heating or diesel oil heating. You can choose it as per your requirement.

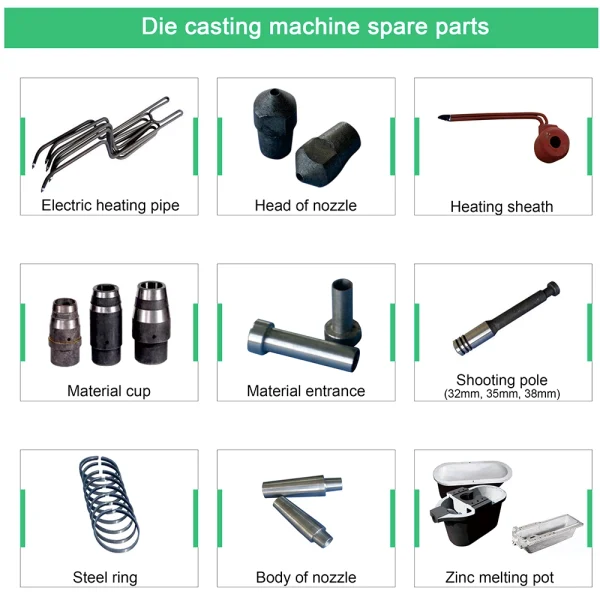

3. I want to buy spare parts of die casting machine, can you offer to me?

QLQ: Sure. Which spare parts do you need? And what is the brand and capacity of your die casting machine? It is better that you can send the name plate of your machine directly.
