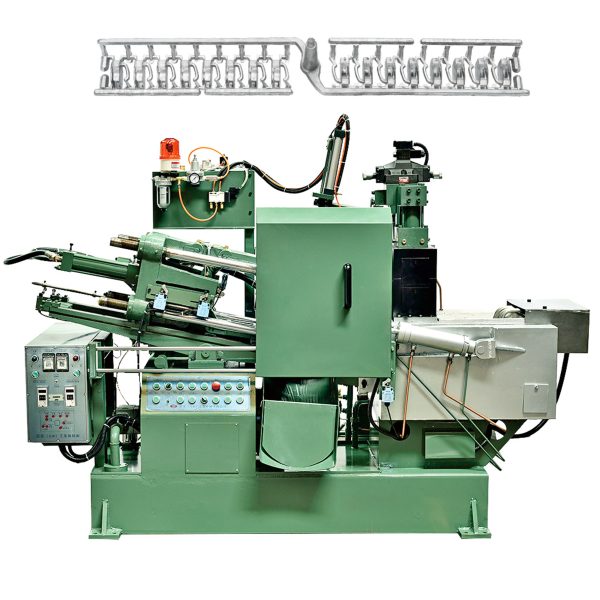

12 20 30 ton Hot Chamber Metal Zipper Hardware Accessories Pressure Oven Die Casting Molding Press Machine 15t Parts for Zipper

: 12 20 30 ton Hot Chamber Metal Zipper Hardware Accessories Pressure Oven Die Casting Molding Press Machine 15t Parts for Zipper

EMAIL:cathy@qlqcompany.com

Key attributes

Other attributes

Machine Type	Hot Chamber Die Casting Machine
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	2 years
Core Components	Engine, Motor, Gear, Pump
Place of Origin	Guangdong, China
Condition	New
Weight (KG)	900
Warranty	2 years
Key Selling Points	Automatic
Applicable Industries	Manufacturing Plant, zinc products
Showroom Location	Canada, Turkey, United Kingdom, Peru, Indonesia, Pakistan, Russia, Spain
Max.Thickness of Die Block (mm)	280 mm
Min.Thickness of Die Block (mm)	100 mm
Ejection Force(kN)	100 kN
Ejection Stroke(mm)	200 mm
Brand Name	QLQ
Voltage	380V
Dimension(LWH)	2.71.22.3m
Power (kW)	15kw
Product type	Znic Hot Chamber Die Casting Machine
Function	only for zinc die casting
Model	15T/25T/30T
Certification	CE
Frequency	50HZ
Power	21kw
Weight	800kg
Phase	3PH
Die thickness(min~max)	25KN
Core Components	PLC,Pump

Packaging and delivery

Packaging Details

Standard export packing

Product Image

Our Advantages

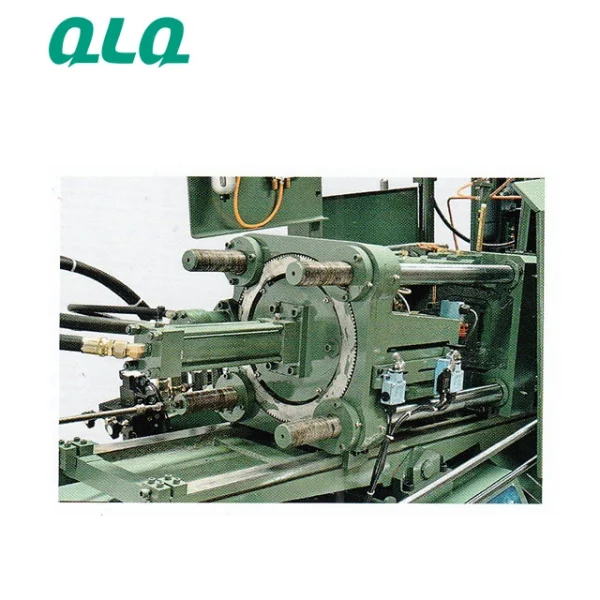

1- Our die-casting machine adopts five points mould clamping mechanical automatic adjusting mould to increase the machine performance.

2- Our die-casting machine adopts automatic oil supply system and the steel pins and tie bats are not easy to broken. It adopts buckle nozzle cylinder to increase working efficiency.

3- By adopting jogging mould locking and mould opening, this machine is more safe to be operated.

We have different models of die casting machine, such 15T, 25T , 30T, and etc. Besides, we also have machine with or without PLC&HMC system. Price based on your requirement.

Which ton I want	15 Ton	25 Ton	30 Ton - 50 Ton	30 Ton - 50 Ton
Suitable items	slider, puller, small button ( mould is small). spead is fast	Mould is more bigger, output is more	spead is not so fast, mould is big,output is more much	for big products, bag hardware

Item	Unit	15T	25T	30T
Mould clamoing pressure	KN	150	250	300
Oil pump flow	L	PV2R2-33	PV2R2-47	PV2R2-53
Oil drum capacity	L	180	250	350
Rated pressure	Kg/c?O	50	80	80
Energy accumulator	L	10L	16L	20L
Motor power	Kw	5.5HP	7.5(10HP)	7.5(10HP)
Tie bars diameter (for fixing mould)	MM	210x210	230x230	270x270
Casting force	MM	15	15	30
Casting stroke	MM	80	80	100
Opening stroke	MM	135	170	200
Mould thickness (min-max)	MM	120-180	100-270	100-280
Tie bars diameter	MM	φ35	φ45	φ50
Ejection bar diameter	MM	φ35	φ38	φ45
Shooting pole diameter	MM	φ38	φ30	φ40
Casting capacity (actual)	G	60-120	60-180	60-350
Ejection position	MM	0	0	0

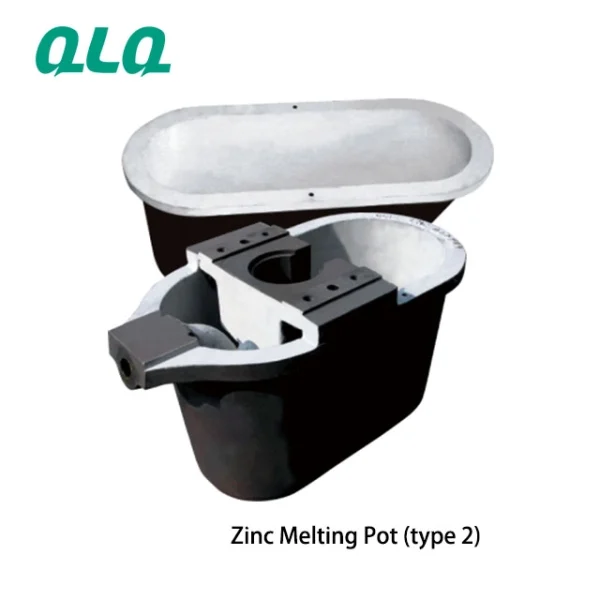

Zinc melting pot capacity	Kg	120	150	150
Centre distance of front mould screw	MM	120	120	120

Product Specification

Packing & Delivery

Our after-sell Service

1) QLQ after-sales team training customer's technicians how to use our machine in their factory.

2) We can offer many useful videos to teach customer's technician how to use our machine well. We will also provide inspection
report before shipment.
